The CORBA-UNO bridge

OpenOffice.org

Integrating into the GNOME desktop

Introduction
- Design concepts
- Accessing UNO processes from CORBA and vice versa
- Oneway calls
- Object lifetime
- Thread identity
- Object identity
- Mapping of XInterface and GNOME::Unknown
- Multiple inheritance
- Type information
Implementation concepts
- Object identifier
- Corba bridge service
- Connection management
- IIOP versions
- Deployment for the GNOME orbit

Introduction

OpenOffice.org is a fully featured office productivity suite available for the most popular platforms. One aim of OpenOffice.org is to seamlessly integrate into each platform's most popular desktops.

One major desktop on Linux and Solaris is developed by the open source GNOME project. The component model of the GNOME desktop is BONOBO, which is built on top of ORBIT, an open source CORBA ORB (Object Request Broker).

To be able to communicate with the GNOME desktop, we want to develop a CORBA-UNO bridge using IIOP (Internet inter orb protocol).

Goals for the bridge

The main goal is to get a CORBA-bridge that supports all features necessary to communicate with the GNOME desktop. This would e.g. allow to script OpenOffice.org from a GNOME scripting language. As a secondary goal an arbitrary CORBA-ORB should be able to directly access OpenOffice.org using the same bridge (for example on windows). This would allow to integrate OpenOffice.org seamlessly into any CORBA environment.

However, bridging UNO and CORBA is a non trivial task, as both component models are based on different fundamental concepts. This document should provide concepts about how to cope with most of these fundamental differences. It is supposed to grow within the next weeks as documentation either during and after development of the bridge. It should be a kind of an open document, as that important points brought up by the community will be inserted here.

What exactly can be done with a CORBA-UNO bridge?

An UNO-CORBA bridge allows to e.g. call methods at an UNO object (let's say a writer document) from the BONOBO object model. The caller does not need to know he is calling an UNO object, the only thing he does is invoking a method on a CORBA interface. It is not needed for the caller to have any UNO libraries in process nor is it needed for the callee to have any orbit libraries in process.

The other way round, the bridge allows an UNO programmer to call CORBA objects from UNO. The UNO programmer does not have to have any special CORBA knowledge, he simply calls on UNO interfaces.

To support callback interfaces, it should be possible to implement CORBA-interfaces in UNO and vice versa.

Design concepts

Accessing UNO processes from CORBA and vice versa

The main problem of accessing an object in a different process is that you need the IOR (Interoperable Object Reference) of this object in the other process. The most common way is to have a daemon like process (typically a namingservice or a implementation repository) that administrates IORs. Every CORBA application can access this daemon to retrieve an IOR of the desired object.

The root IOR of this daemon process must somehow be brought to every single application. How this is done, is orb dependent (possible solutions are a certain file on the filesystem, configuration files, environment variables, command line parameters, etc).

The mechanism how to access this IOR should be made abstract to allow to implement a different mechanism for different orbs. A simple interface as following one should be sufficient.

      interface XRootIORProvider
      {
        /** tries to locate a corba root object using a specified method.

		Note : In general, no CORBA bridge needs to be instantiated.
		       This IOR can be retrieved by some other mechanism.

	   @param howToFindObject
	          format: kind of service to find, comma separated attribute
		      list e.g. "GnomeResolverFromX,display=jbu-11096:1" or
			  similar.

	   @return stringified IOR, if a namingservice could be found,
		      otherwise an empty string.
	 */
	 string findRootIOR( string howToFindObject );
      };

returned stringified IOR can later be used to create an UNO interface reference to the object. Therefor will exist an CORBA bridge interface with a method


     interface XCorbaBridge
     {
	[...]
	Any resolveByStringifiedIOR( string sIOR );
	[...]
     };

The returned Any contains an UNO interface reference. This can be used to directly make calls.

So far the problem, how OpenOffice.org can access CORBA services, is solved. But what is the other way round? How can we get the OpenOffice.org servicemanager into the oaf? There are multiple possible solutions.

  1. Insert the UNO servicemanager IOR into oaf at Office startup. This works fine as long as the office is running.

  2. Add oafinfo-files to the oaf, so that the oaf itself can start the office, if needed. The office must then behave like an arbitrary GNOME service, interpret command-line parameters and use the oaf-library to do some non-corba-communication with the oaf. It still needs to be investigated, if this has any problems.

  3. (and in my eyes the CORBA way to do it) Have our own UNO daemon, that itself works as implementation repository for UNO services (such as the office). The office servicemanager is configured in the oaf simply by a persistent stringified IOR, but uses the host/port entries of the UNO daemon. When someone tries to make a call on the object, the UNO daemon starts up the office and replies a LOCATION_FORWARD iiop-message with the appropriate host/port entries. To allow this , ORBIT must support LOCATION_FORWARD messages (does it?).

  4. Have a UNO daemon, that runs continuously. It implements the oaf OAF::ObjectDirectory interface and inserts it into the running oaf. It starts the office on demand using the office-specific command line parameters.

Which solution will be used is not yet determined.

Oneway calls

CORBA does not guarantee the sequence of calls for oneways. However, a lot of UNO interfaces and implementations rely on that (think of the sequence acquire(),acquire(),release() gets mixed up to acquire(),release(),acquire(), this would be fatal). So I think, it is inevitable to export all UNO-oneway-methods as synchronous to CORBA.

Oneway with CORBA interfaces however should be supported, as there it must have been decided during design, that the series of calls is not important.

Is a special solution for GNOME possible (maybe the implementation guarantees the sequence of calls)?

Object lifetime

Several use cases must be taken into account when talking about object lifetime.

use case object used by object implemented in interface originally defined in
# CORBA UNO CORBA UNO CORBA UNO
1. x x x
2. x x x
3. x x x
4. x x x
  1. CORBA object implementing an CORBA-interface used from UNO
    The interface-definition is imported from CORBA to be accessible for the UNO runtime. The interface is flagged as being a CORBA interface. For the UNO runtime, the interface is derived from XInterface.

    The UNO-CORBA bridge must create a proxy within the UNO process, it must implement acquire(), release() and queryInterface(). As the interface does not support a queryInterface method, it must be dummy-implemented, so that it supports a query for the interface and all its superclasses.

    The lifetime of the proxy bears no problem, it is simply refcounted. If the refcount drops to zero, the proxy dies silently, no message is transported to the original object.

  2. CORBA object implementing a UNO-interface used from UNO
    The UNO interface-definition must be imported into the CORBA typelibrary and stub/proxy-code must be generated for the CORBA-process. The object must implement itself acquire(), release() and queryInterface() and maybe getCorbaID() (see below).

    Here the lifetime problem becomes a little difficult. Let us first have a look at lifetime handling in a UNO-UNO interprocess-bridge.

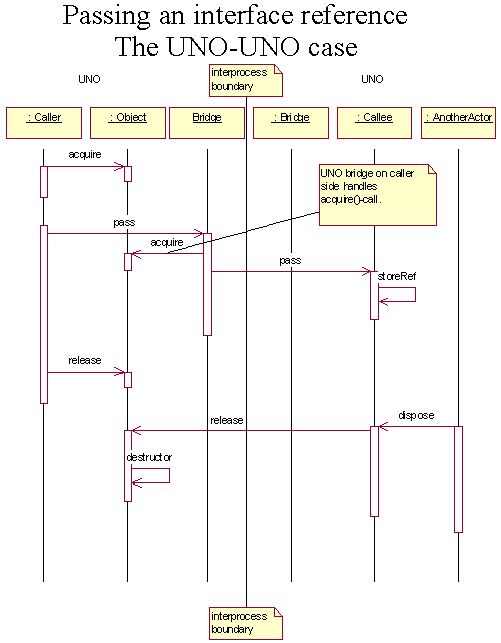

    Uno interface

    The pass() call shall pass an interface reference as its first argument. The UNO-UNO bridge acquires the object on caller side, the bridge on callee side knows, that it gets an acquired interface.

    This cannot be done with a general CORBA orb, because the orb runtime doesn't know, that it should call acquire implicitly. How can this be solved? In general, the callee must acquire the interface, when it wants to keep it. The UNO-CORBA bridge would acquire it in advance and release it again when the newly created proxy is destroyed. Thus the UNO-developer wouldn't need to do anything by hand.

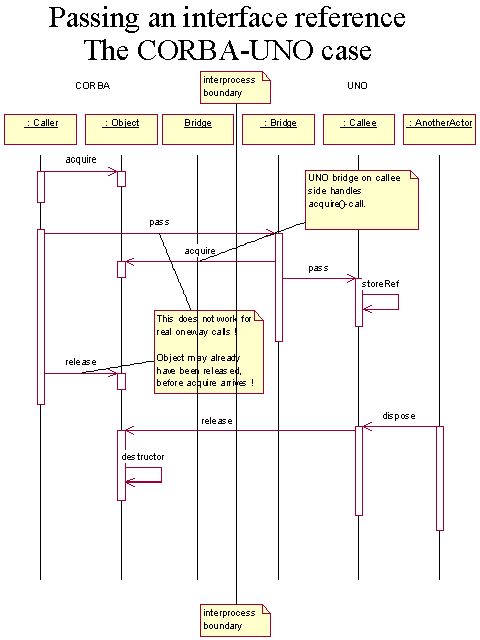

    Corba uno interface

    This does NOT WORK FOR ONEWAY CALLS. This technique may also be inefficient, because every mapped interface requires a (maybe synchronous) acquire() call. However, as GNOME does refcounting this way, the UNO-CORBA bridge will also do it this way thus ignoring the problem.

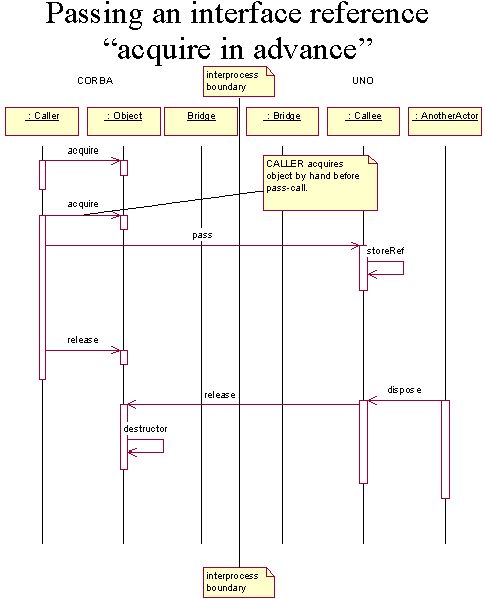

    Acquire in advance
    Another possibility would be to make the CORBA developer responsible for this, if he passes a object-reference, he must call acquire in advance. This is very error prone (think about any, structs and sequences, that all would need to be parsed for object references), however this is the only way how oneway requests can pass object references. This could be introduced only for oneway calls, but as in general it cannot be seen from the method signature, whether a call is oneway or synchronous, this would be very confusing.

    reference interface

    Another solution would be to simply ignore acquire() and release(), but how shall the CORBA side then get to know, when an instance can be discarded, as the OpenOffice.org API is not designed for telling the objects something like this?

  3. UNO object implementing a CORBA-interface used from CORBA
    The CORBA-interface is derived from XInterface in the UNO process. So for the object itself, the lifetime must be controlled via acquire() and release() calls.

    The problem is, that when the UNO-object is once mapped out to a CORBA process, the UNO-CORBA-bridge must hold a reference to the object and does not know, when to release it. (The CORBA developer does not see the acquire() and release() methods).

    Often, CORBA interfaces are somehow designed to control lifetime of objects. For example, an object has an explicit destroy() method, on which the documentation states that the instance is destroyed and the object becomes unreachable. However the bridge can't read documentation ( :o) ), so there must be mechanism, that the implementation can tell the bridge, that it does not need to be held anymore.

    As the implementation naturally does not know the bridge instance, there should be implemented a broadcast/listener mechanism to broadcast this message to all CORBA bridge instances. There could be a singleton service, that knows all CORBA bridges (maybe a factory, that creates all CORBA bridges.)

    interface XCorbaBridgeFactory : XInterface
    {
       XCorbaBridge createBridge( ... );

       void fireDisposeObject( [in] XInterface disposedObject );
    }


  4. UNO object implementing a UNO interface used from CORBA Here the CORBA developer sees the acquire(), release(), queryInterface() and getCorbaID() method. Because the CORBA runtime does not support acquire() directly, the CORBA developer must call acquire() and release() by hand.

    Interface references returned by a method (as return value or out-parameter) are supposed to be acquired, thus if the references must be released by the CORBA programmer, if not needed anymore. This means, that a CORBA programmer who implements a UNO-interface methods, that returns an interface reference (via return value or out-parameter) must acquire the interface beforehand.

Thread identity

UNO interprocess bridges preserve thread identity, that means when process A calls process B and in the same request process B calls again process A, the same thread waiting in process A will take over the new request. This ensures that thread local resources (locked mutexes, thread local storage, etc.) are preserved.

An arbitrary CORBA orb may not support thread identity. The id can be inserted into the service context list. If the CORBA process supports it, it is fine, if not thread identity cannot be preserved, this could result in deadlocks.

The service context id LogicalThreadId can be reused, that was original designed for DCOM interoperability. An appropriate ID for this should be applied at the omg.

Object identity

CORBA does not guarantee object identity , but several UNO interfaces (especially container and broadcaster/listener interfaces) rely on that. I would like to introduce a typical example, where such a problem occurs.

interface XListener :  XInterface
{
...
};

interface XBroadcaster : XInterface
{
   void addListener( [in] XListener listener );
   void removeListener( [in] XListener listener );
}

The XBroadcaster interface is implemented by the UNO object U (in the UNO process), the XListener interface is implemented by the CORBA object C in the CORBA process. Now there is an actor, that wants to add C into U and later remove C from U.

Adding is no problem, but removing is. The CORBA bridge in the UNO process must know, that the reference passed with the removeListener() method, is the same, that was passed with the addListener() method. However, it can't know for sure just by seeing the object reference, because in CORBA it is possible, that two object references denote one object.

The problem is even worse, because the removal may work most of the time (object references passed by add/remove are identical), but sometimes not.

Note, that the check for object identity in UNO is done by comparing the pointer of the XInterface proxy. So a UNO-CORBA bridge must ensure, that interfaces belonging to the same object get the same proxy. This must be done for every interface reference, because the bridge does not know in advance, if there will be a check for object identity.

Possible solutions for this problem are :

  1. Leave the problem of the object identity to the CORBA developer. The UNO-base interface XInterface gets a new method in CORBA :

    interface XInterface
    {
          any queryInterface( [in] Type type );
          [oneway] void acquire();
          [oneway] void release();
          /**
            returns an ID, that uniquely identifies this object.

    	The ID must be globally unique, e.g. a GUID.
          */
          sequence< byte > getCorbaID();
    };


    Every time, an object is mapped from CORBA to UNO, the UNO-CORBA bridge checks, if it knows the reference already. If it is new, it calls getCorbaID() at the object. In case, the bridge knows the object already, the existing proxy is used, so that object identity is guaranteed.

    This works (as long as a unique id is provided), but it may be excruciatingly slow for some applications (for every newly mapped interface, 1 remote call is necessary, think of a sequence< XInterface > with 100 elements, and you know what I mean :o) ). This is also a burden for the CORBA developer.

    There are three solutions, to avoid the performance problem

    1. The UNO-CORBA bridge itself exports the interface XRemoteCorbaBridge interface (how can it be offered to the client?).

      interface XRemoteCorbaBridge
      {
          [oneway] void associateInstanceWithId(
                        [in] any instance, [in] sequence< byte > corbaID );
      }


      In the any, the object reference is inserted, that is going to be mapped in near future. The sequence< byte > contains the id, that would be returned by the getCorbaID()-method. This would lead to the following code (I use UNO C++ notation, because I don't know a CORBA C++ mapping very good):

        Reference< XRemoteCorbaBridge > rRemoteCorbaBridge =
                                              ... (got from somewhere);
        Reference< XBroadcaster > rBroadcaster = ...(got from somewhere);
        Reference< XListener > rListener = ... ( got from somewhere);

        Any myAny;
        myAny <<= rListener;
        rRemoteCorbaBridge->associateInstanceWithId(
          	                myAny, rListener->getCorbaID() );
        rBroadcaster->addListener( rListener );

        // and later
        ...

        rRemoteCorbaBridge->associateInstanceWithId(
      	                    myAny, rListener->getCorbaID() );
        rBroadcaster->removeListener( rListener );


      (The second associateInstanceWithId call is not necessary, when the same reference is used).

      One advantage of this solution is, that the CORBA developer must only care for the problem, where performance is needed, but it looks quite ugly.

      Because CORBA does not guarantee the series of oneway calls, it is not certain , that this will work as expected (but quite likely for most ORB implementations). However as this is only an optimization, the code will still works.

    2. The orb could be modified, that it inserts into the IOR a special profile which includes the object identifier. Such a profile must be specified and a tag must be applied at the omg.

    3. For every UNO interface, a struct is generated, for example:

            struct container_XListener
            {
                XListener reference;
      	  sequence< byte > corbaId;
            };


      This struct replaces every occurrence of an interface reference such a way, that e.g. the XBroadcaster interface looks like

      interface XBroadcaster : XInterface
      {
         void addListener( [in] struct container_XListener listener );
         void removeListener( [in] struct container_XListener listener );
      }


      The CORBA developer must then fill the struct with the correct id before passing it to a UNO. Using no id might signal, that the caller does not care about object identity for this object.

  2. Remove all API in UNO, that relies on object identity and erase those interfaces. There is currently a lot of code relying on this. It does not seem to be possible in near future.

  3. For every mapped interface, a new proxy is generated, object identity would never work. Thus, the above API is not useable for the CORBA programmer.

  4. A clever proxy for such a container interface is used in the UNO process.

    interface XBroadcasterProxy : XInterface
    {
        long addListener( [in] XListener listener );
        void removeListener( [in] long id );
    }


    The XBroadcasterProxy implementation is connected to the XBroadcaster implementation somehow before (it may be a separate service). The XBroadcasterProxy.addListener implementation adds XListener-Proxies to the XBroadcaster implementation and stores a hash id, which is returned to the original actor. This actor can later remove the interface at the XBroadcasterProxy implementation using the returned id.

    The broadcaster proxy must certainly be implemented generically, so that it can be reused as often as possible.

    This works in the concrete example, but does not solve all problems. If the interface reference of C is passed to an object in the UNO process, and this object inserts it into a container, the same problem may occur.

    We are currently looking for a better solution. Any suggestions?

    Mapping GNOME::Unknown and com::sun::star::uno::XInterface

    As a result of the above discussion on object identity and object lifetime, the following rules can be obtained :

    • All CORBA interfaces seem to be derived from XInterface in the UNO process. The typelibrary needs to be extended, so that the CORBA-UNO bridge can identify, whether a given interface has its origin in CORBA or in UNO.

    • All UNO interfaces appear in CORBA as derived from XInterface, but XInterface gets the additional getCorbaId() method.

    • All CORBA interfaces derived from GNOME::Unknown appear in UNO only as derived from com::sun::star::uno::XInterface, the GNOME::Unknown interface does not appear. The typelibrary needs to be extended, so that the CORBA-UNO bridge can identify, that the GNOME::Unknown interface is the real base interface.

    Multiple inheritance

    Multiple inheritance will not be supported in the first version of the UNO-CORBA bridge.

    Type information

    Both processes (UNO and CORBA) must have the same type information available. In UNO, these types must be accessible via the typelibary. The CORBA-UNO bridge will generically marshal these calls without the need of generated code. On CORBA side, there must be (in general) libraries of generated stub/proxy code available.

Implementation concepts

Object identifier

What object identifiers get incoming CORBA objects within UNO and what object ids get outgoing UNO objects?

As there is currently no better proposal for the object identity problem, we assume that solution 1. is chosen.

First the mapping of UNO objects to CORBA is discussed. Below you find a typical example of an UNO object implementing multiple interfaces.

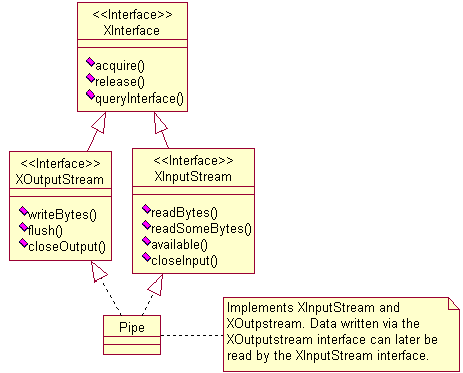

Pipe inheritance

The Pipe object is instantiated in the UNO process and is passed as an XInterface reference to the CORBA-process.

In CORBA, object references contain the most derived type and (beside other things) an unique object identifier. A request can be invoked by sending the unique object identifier (and thus leaving out the type information). As there is no most derived type in UNO, the UNO-CORBA bridge must be able to extract solely from the object identifier, which object and which interface the request is meant for.

The bridge could use the UNO object identifier and try to find out by the method name, which interface shall be called on. But this would mean that it is not possible to have two methods with the same name in two different interfaces.

So the UNO-CORBA bridge should use the UNO object identifier as an prefix and adds a type identifier. The type identifier may either be the complete type name or a single byte (the bridge ensures the byte's uniqueness for every single object ).

So in the above example, if the UNO object identifier is "leo", the CORBA object identifier could be

Object IDtype name
leo0XInterface
leo1XInputStream
leo2XOutputStream

For persistent object references, the name given to the object when inserting it into the bridge is used (Note that this will only be done for the exact type, other interfaces of the persistent object will have transient ids), so for persistent references, there is no type suffix.

Now the mapping of CORBA objects to UNO is discussed. If an CORBA object implements UNO interfaces, the object must implement a getCorbaId() method. The bridge calls this method and uses the return value as unique object identifier.

For CORBA objects implementing CORBA interfaces, the bridge itself must generate an object identifier. It may happen that the same object gets different object identifiers, because the CORBA-UNO bridge has no possibility get the id of the object. So object identity for these objects will not work in UNO. However, the bridge must ensure, that an identifier is unique, therefor it is not sufficient to use the CORBA object identifier (two different CORBA processes may use the same identifier). Therefor an connection dependent prefix is added to the object identifier (maybe a GUID generated for every connection).

CorbaBridge service

The CorbaBridge service is the interface between the UNO developer and the core bridge. In general, this service is used at startup and shutdown of the bridge.

What does the bridge need?

Below you can find a first possible draft of the interface. No error handling yet specified.

struct PersistentInstance
{
   string Name;
   any    instance;
};

interface XCorbaBridge : XInterface
{
    /** allows the bridge to listen on multiple ports
    */
    void addAcceptor( [in] XAcceptor acceptor, [in] string acceptString );
    void removeAcceptor( [in] XAcceptor acceptor );

    /** the bridge calls uses this connector, to
         establish interprocess connections.
    */
    void setConnector( [in] XConnector connector );

    /** the reply address is inserted in transient object references.
    */
    void setTransientReplyAddress( [in] string connectionString );
    void addTransientObject( [in] any instance );

    void setPersistentReplyAddress( [in] string connectionString );

    void addPersistentObject( [in] string objectName, [in] any instance );
    void removePersistentObjectByName( [in] string objectName );
    sequence < struct PersistentInstance > getPersistentObjects();

    /**
       Removes either transient or persistent objects.

      The object must have been added before either by addTransientObject or addPersistentObject.
    */
    void removeObject( [in] any instance );

    /**
      returns a stringified IOR, that an arbitrary orb may use to connect to this object.

      The object must have been added before either by addTransientObject or addPersistentObject or
      has been mapped before from a CORBA process.
    */
    string getIORForObject( [in] any instance );

    /** allows retrieval of an object from a arbitrary CORBA process using a stringified IOR.
    */
    any resolveByIOR( [in] string sName );


    /**
      Sets corba bridge into an inactive state. All calls are suspended, no connections
      are accepted.

      After instantiation, the bridge is in a suspended mode. One may mush to switch to
      suspended mode again, when multiple changes shall be applied to the bridge
      parameters consistently.
    */
    void suspend();

    /**
      Sets corba bridge into an active state. Connections can be accepted, calls
      are processed.

      After instantiation, the bridge is in a suspended mode.
    */
    void resume();

    /** Shutdown the bridge. All connections are interrupted, all instances are released.

       @param waitForCompletion if true, the method waits until all threads have gone.
                                if false, the method returns immediately. ( This may be
				necessary, if the method is called from a remote process ).

    */
    void shutdown( [in] boolean waitForCompletion);
};

service CorbaBridge
{
    interface XCorbaBridge;
};

Interprocess connection management

A normal UNO-UNO interprocess bridge just owns one interprocess connection. This is not appropriate for the UNO-CORBA bridge, because interface references handed out over one connection can come in again over a different connection and must still be valid, so all connections must end in one bridge.

The UNO-CORBA bridge needs to distinct between connections initiated from the UNO process or from an arbitrary CORBA process. If a request shall be invoked on a object, that has not been invoked before, the IOR must be parsed for a host/port combination. The bridge has a hashmap for actively initiated connections. The key is host/port and the connection is the value.

If there is no match, the bridge tries to initiate a connection. On success, the connection is added to the hashmap. The proxy should store that it got the object last time over this connection for performance reasons.

Actively initiated connections can be closed at any time. This should be done, when the last proxy, that uses this connection, dies.

Passively initiated connections should be closed by the remote process. Another possibility would be to close it when the last stub for this connection dies, however then a CloseConnection message must be sent.

Bidirectional communication (as specified by GIOP 1.2) should be ignored in the first run, because it complicates things a lot.

IIOP versions

I think IIOP versions 1.0 is sufficient for the first running ORB. The following features are added in the following versions : In the first run, only version 1.0 should be supported. Keeping the versions 1.1 and 1.2 in mind during implementation, it should be quite easy to implement them later if needed.

How can the CORBA-UNO bridge be deployed for the GNOME orbit?

(prebuilding stub/proxy code?, which compiler to use?, where to put the libraries?, how do we get the UNO types into the typelibrary?)

Author: Joerg Budischewski, Jürgen Schmidt ($Date: 2004/11/27 08:10:06 $)
Copyright 2001 Sun Microsystems, Inc., 901 San Antonio Road, Palo Alto, CA 94303 USA.

Apache Software Foundation

Copyright & License | Privacy | Contact Us | Donate | Thanks

Apache and the Apache feather logo are trademarks of The Apache Software Foundation. OpenOffice, OpenOffice.org and the seagull logo are registered trademarks of The Apache Software Foundation. Other names appearing on the site may be trademarks of their respective owners.
